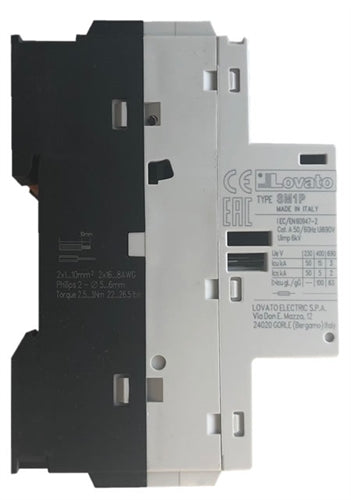

The Lovato SM1P series of manual motor protectors offers AMP ranges from 0.10 up to 40 AMPS in one small, compact frame size for installation in most enclosures. These motor protection circuit breakers offer thermal and magnetic trip releases with a high breaking capacity suitable for isolation installation. A simple adjustment dial, screw terminals and DIN rail mounting provides for the easiest installation and removal which reduces down time and lowers costs associated with replacement. Optional auxiliary contacts and under voltage trips make the Lovato SM1P0063 one of the most versatile manual motor starters on the market today.
SM1P0063
$46.48
Sale price
$46.48
Regular price
$76.20
- IEC rated insulation voltage Ui: 690V
- IEC rated frequency: 50/60Hz
- Maximum rated current: 40A
- Magnetic tripping: 13In max.
- Tripping class: 10A
- Phase failure sensitive
- Mechanical life: 100,000 cycles
- Electrical life: 100,000 cycles
- Mounting on 35mm DIN rail
- IEC degree of protection: IP20
